H&K PSG-1

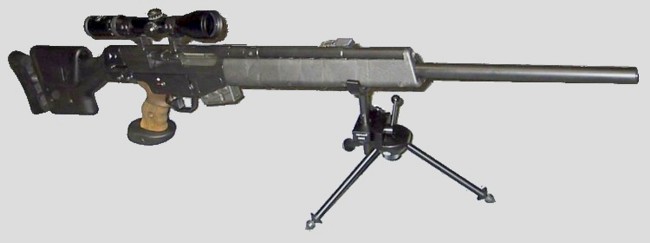

HK PSG-1, with tripod rest.

Other Pictures:
HK PSG-1, Left side view, with tripod rest.

Close-up on the PSG-1 receiver. Note adjustable shoe on the trigger, adjustable cheekpiece, "silent bolt closing device" pushbutton just behind the ejection port

Movie
(FILM) PSG-1 Presentation (.MOV)

The PSG-1 sniper system (PrazisionsSchutzenGewehr, or "high-precision marksman`s rifle" in English) had been developed by the German company Heckler - Koch by the mid-1980s as an ultimate police and counter-terror weapon. Some German elite law-enforcement groups, like GSG or KSK-9, participate in this development, and since its introduction the PSG-1 had been adopted by various police forces in Europe and Americas. It is way too heavy and somewhat too gentle for military use, so it never seen any military use. Instead, HK developed two more sniper weapons. The first, that actually preceded the PSG-1, was the G3-SG1, an accurized and scope-fitted version of the basic G3 automatic rifle for German Army. And in the mid-1980s HK also developed a derivative of the PSG-1, called MSG-90, for export military sales. The PSG-1 is still offered by the HK, and is one of the most expensive factory-made sniper rifles on the market, hitting the $10.000 price tag in the basic package.

Audemars Piguet Replica Watches

Technically, the PSG-1 is no more than a heavily modified G3 rifle. It features the same roller-delayed blowback action, derived from earlier CETME rifles, and the same stamped steel receiver with separate detachable trigger unit. The heavy barrel is precisely made by the cold hammer forging process with polygonal rifling for improved accuracy and longer life. Special trigger unit features a semi-automatic only hammer group and the adjustable trigger with trigger pull of about 1.5 kg (3 lbs). The ergonomically shaped pistol grip features an adjustable palm stop. Plastic buttstock is also adjustable for height and for length of pull. Another non-typical feature of the PSG-1 is the "silent bolt closing device", actually similar to the forward assist, found on M16 rifles. This is apparently to be used in situations where a complete silence must be maintained until the shot is fired. The devise is no more that a pushbutton, located just behind the ejection port, and linked to the bolt carrier by the ratchet-like device. The rifle is fed using standard 20-rounds G3 magazines or special 5-rounds magazines. There`s no open (iron) sights on the PSG-1. Instead, it is fitted with the Hendsoldt 6X42 fixed power telescope sight with illuminated reticle. The scope has built-in range adjuster that works in ranges from 100 to 60 meters, so 600 meters is considered the maximum effective range. Most strangely, the PSG-1 had no integral bipod. Instead, it is often used with the separate rest, mounted on the compact tripod.
IWC Aquatimer replica watches http://www.ts-watches.me/aquatimer-c-67_117/

Weapontype:
(Sniper) Rifle - Anti Personell

Operation:
Semi-automatic, roller-delayed blowback

Cartridge:
7.62 x 51mm NATO (.308 Win)

Weight:
8.10 kg w/ scope and w/o magazine

Length:
1208 mm

Barrel:
650 mm

Rifling:
4 grooves, rh

Magazine Capacity:
5 or 20 round

In Production:
1975-

Sights:
Hendsoldt 6x42, 6 settings from 100 to 600 meters

Markings:
`PSG1 HK Kal 7.65x51 serial number`; all on left side of magazine housing.

Safety:
Manual safty catch on left side of receiver, above trigger. Up for safe, down for fire.
