The matchlock was the first mechanism invented to facilitate the firing of a hand-held firearm. Before this, firearms (like the hand cannon) had to be fired by applying a lit match (or equivalent) to the priming powder in the flash pan by hand; this had to be done carefully, taking most of the soldier`s concentration at the moment of firing, or in some cases required a second soldier to fire the weapon while the first held the weapon steady. Adding a matchlock made the firing action simple and reliable by a single soldier, allowing him to keep both hands steadying the gun and eyes on the target while firing.
A wheellock, wheel-lock or wheel lock, www.juliuswatch.info is a friction-wheel mechanism to cause a spark for firing a firearm. It was the next major development in firearms technology after the matchlock and the first self-igniting firearm. Its name is from its rotating steel wheel to provide ignition. Developed in Europe around 1500, it was used alongside the matchlock and was later superseded by the snaplock (1540s), the snaphance (1560s) and the flintlock (c. 1600).
Flintlock is a general term for any firearm that uses a flint striking ignition mechanism. The term may also apply to a particular form of the mechanism itself, also known as the true flintlock, that was introduced in the early 17th century, and rapidly replaced earlier firearm-ignition technologies, such as the matchlock, the wheellock, and the earlier flintlock mechanisms.
The true flintlock continued to be in common use for over two centuries, replaced by percussion cap and, later, the cartridge-based systems in the early-to-mid 19th century. Although long superseded by modern firearms, flintlock weapons enjoy continuing popularity with black-powder shooting enthusiasts.
The percussion cap, introduced around 1830, was the crucial invention that enabled muzzle-loading firearms to fire reliably in any weather. Before this development, firearms used flintlock ignition systems which produced flint-on-steel sparks to ignite a pan of priming powder and thereby fire the gun`s main powder charge. The flintlock mechanism replaced older ignition systems such as the matchlock and wheellock. Flintlocks were prone to misfire in wet weather, and many flintlock firearms were later converted to the more reliable percussion system.

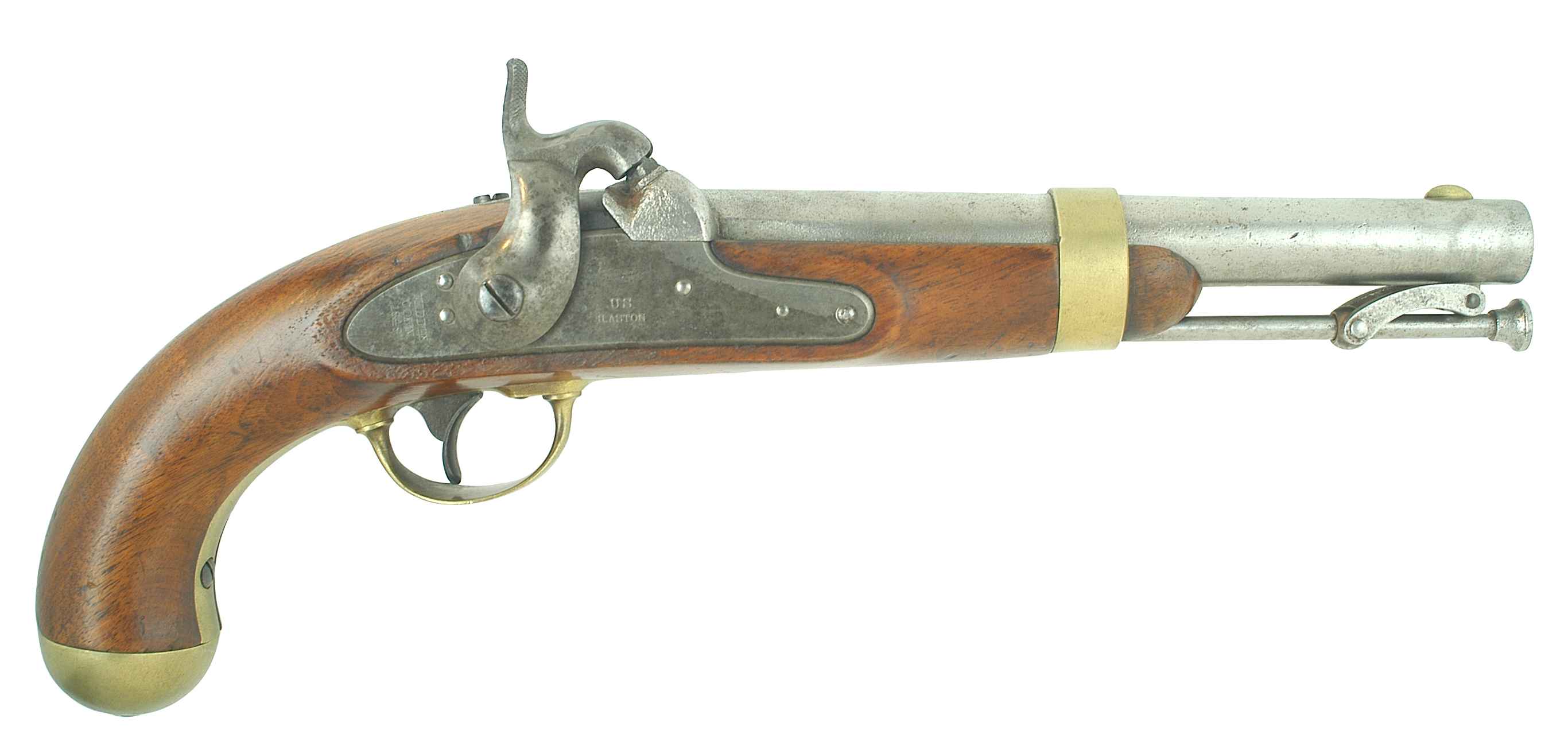

The percussion cap is a small cylinder of copper or brass with one closed end. Inside the closed end is a small amount of a shock-sensitive explosive material such as fulminate of mercury. The percussion cap is placed over a hollow metal "nipple" at the rear end of the gun barrel. Pulling the trigger releases a hammer which strikes the percussion cap, and ignites the explosive primer. The flame travels through the hollow nipple to ignite the main powder charge. Percussion caps were, and still are, made in small sizes for pistols and larger sizes for rifles and muskets.
While the metal percussion cap was the most popular and widely-used type of primer, the small percussion caps were difficult to handle under the stress of combat or while riding a horse. Several manufacturers developed alternate "auto-priming" systems. The "Maynard Tape Primer," for example, used a roll of paper "caps" much like today`s toy cap pistols. The Maynard Tape Primer was fitted to some military firearms used in the American Civil War. Other disc or pellet-type primers held a supply of tiny fulminate detonator discs in a small magazine. Cocking the hammer automatically advanced a disc into position.
In the 1850s, the percussion cap was first integrated into a metallic cartridge which contained the bullet, replica watches powder charge and primer. By the late 1860s, breech-loading metallic cartridges had made the percussion cap system obsolete. Today, reproduction percussion firearms are popular for recreational shooters and percussion caps are still available.
