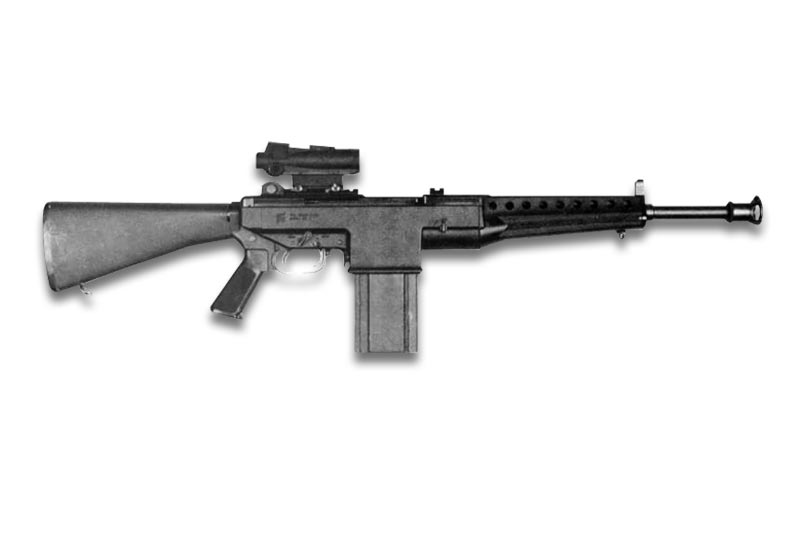

The AAI CAWS (Close Assault Weapon System)
is a prototype automatic shotgun—designed as a combat shotgun— produced by the AAI Corporation during the 1980s. It was AAI`s entry into the U.S military`s Close Assault Weapon System program.
It is a 12-round, 12-gauge shotgun with two firing modes: semi-auto and full-auto.
Development
In 1982, the United States was seeking entrants Close Assault Weapon System program. Grown out of previous combat shotgun programs, this program had inherited the specification from the RHINO program that had preceded it. These specifications required a magazine capacity of 10 rounds, a requirement for the new ammunition to be incompatible with commercial 12ga shotguns, that felt recoil be no greater than a Remington 870P firing M162 or M257 buckshot cartridges and that the system provide penetration and incapacitation capability significantly better than M162 and M257. In response to this AAI developed their entrant, the AAI CAWS - a select fire, recoil operated, magazine fed shotgun. Using the standard M-16 stock and pistol grip, recoil operation and with an inline design, felt recoil was supposedly less than an M16. A shorter version, without stock, was also developed for Airborne forces. A day/night Reflex sight was offered as standard.
To meet the requirements to both provide ammunition that could not be fired by commercial shotguns, but also for the weapon to fire commercial ammunition, AAI developed a special cartridge larger than 12-ga and then provided a chamber adapter for the weapon to fire regular 12ga. The standard antipersonnel cartridge developed by AAI was loaded with 8, 1 gram (0.035 oz) drag stabilized flechettes. All 8 flechettes were able to hit a 4 m (4.4 yd) circle at 150 m (160 yd). The flechettes at that range had a velocity of 365 m/s (1,200 ft/s) and were capable of penetrating 76 mm (3.0 in) of pine or 3 mm (0.12 in) of mild steel.
Although tested by the U.S. military, the CAWS was canceled, and production, both military and civilian, has halted.
|
Weapontype:
Automatic shotgun
Manufacturer:
AAI Corporation
Operation:
Select-fire Recoil operated
Cartridge:
12 Gauge Special, 12 Gauge (with adapter)
Weight:
4.08 kg (9.0 lb)
Length:
984 mm (38.7 in)
Magazine Capacity:
12-round
Feed system:
Detachable box magazine
Sights:
Day/Night Reflex sight with backup iron sights
Rate of fire:
450 rounds/min
Effective range:
150 m (160 yd)
|
