Maxims `08/15

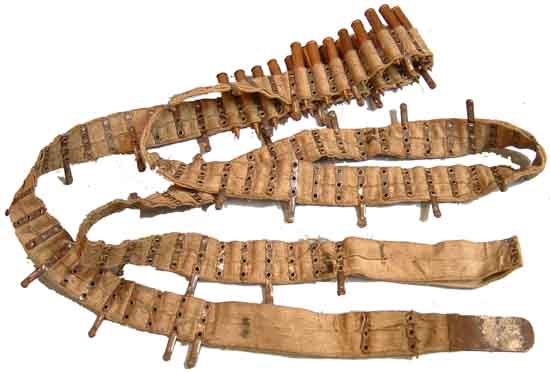

Cloth ammo belt

Other Pictures:
Maxim `08/15

Maxim `08/15, Left side

Closeup of feedway

Ammo drum

clomid

clomid informedu.com.au
The `08/15 was an attempt to provide the german infantry with something rather more portable than the standard `08 on its sledge mount. it was given a small bipod, a shoulder stock and a pistol grip, and the receiver was re-designed in the order to try and save weight. Feed was still by a cloth belt, but a special short belt was used which couldbe coiled on a reel and carried in a container clamped to the side of the gun. In fixed position the standard 250 round belt could be used. There was also an aircraft version of this gun which has a perforated barrel jacket instead of the water jacket, relying upon the airstream to cool the barrel.

Weapontype:
Machinegun

Operation:
water cooled

Cartridge:
7.92 x 57 mm Mauser

Weight:
14.06 kg

Length:
1448 mm

Barrel:
719 mm

Rifling:
4 grooves, rh

Feed system:
50 rounds cloth belt

In Production:
1915-18

Rate of fire:
500 RPM
