Mauser model G98 / K98k

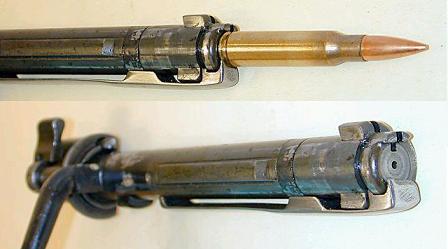

Famous model 98 bolt. Top - showing the "controlled feed ability", bottom - the bolt unit alone

Other Pictures:
Mauser Gew. 98 - original model 1898 Mauser rifle

Mauser K98k - Mauser model 98 "Karbiner Kurz" (short carbine) Although longer than most modern rifles and in some cases longer than some G98

Model 98 firing pin unit along with cocking piece and safety switch

Model 98 three positions safety, from LEFT to RIGHT: "safe and bolt locked"; "safe and bolt unlocked"; "fire"

Exploded view of the Mauser 98 action

7.92x57mm (also known as 7.9mm or 8mm Mauser) ammo on stripper clip

Flash Presentation
(FILM) A member of NZR Para (PMC) with a somewhat modified K98k (.swf)

(MANUAL) FN 98 Manual (.pdf)

buy abortion pill espana

buy abortion pill espana
The Mauser company, established by the two Mauser brothers, established its reputation in firearms making in the last decades of the XIX century, and continued to build a very well thought-out and skillfully built firearms until the end of the World War 2. Some years after the WW2, the Mauser company was restored in the West Germany and continued to build firearms, but mostly a larger-caliber ones, like the aircraft cannons etc. But some of earlier Mauser works became the standards against which all others designs are judged, even after some 100 years after its introduction. One of such designs, is undoubtfully a Mauser model 1898 rifle, also known as Gew. 98 or simply G98 (G = Gewehr, rifle in German). This rifle was designed from the experience, gained on previous Mauser designs, and was first appeared in 1898 as a standard German army infantry rifle. It was carried by Germans through the First World war, along with carbine shortened version, known as K98 (or Kar-98, from Karbiner = carbine). In the 1904 Germans were first to introduce the new, "spitzer" bullet (with pointed tip, instead of the older blunt, round-shaped tip). New bullet had much better long-range ballistic, so all sights were regraduated for new ammunition.

During the interwar period this fine design was slightly altered to became the K98k - Karbiner Kurz, or short carbine - a somewhat shorter, lighter and handier version of the original one. This version appeared in 1935 and was manufactured until the 1945 in large numbers not only by Germans, but also in numerous countries, occupied by Germans. Many versions of this design also were licensed to other countries, which also used to build their own versions of the G98. Most famous of those "foreign Mausers" are Persian Mausers, Turkish Mausers, Czech VZ-24 Mausers, Yugoslavian Mausers and some others. The list of the vast variety of the Mauser-type versions could easily cover a number of pages, but, for the sake of compactness, I will describe only the basic, German model.

The model 98 rifle is a manually operated, magazine fed, bolt action rifle. The magazine and the bolt action are the two most famous features of the model 98. Magazine is a two-row, integral box, with quickly detachable floorplate. Magazine could be topped either with single rounds, by pushing rounds into the receiver top opening, or via the stripper clips. Each clip can hold 5 rounds, enough to fill the magazine, and is inserted into the clip guides, machined into the rear receiver bridge. After the loading, empty clip is ejected automatically when bolt is closed. Magazine could be unloaded by operating the bolt (safety must be in the middle position!) or by removing the magazine floorplate (not recommended).

Mauser bolt is a simple, extremely strong and well thought out design. The bolt has three locking lugs, two at the bolt head and one at the rear part of the bolt. The bolt handle is rigidly attached to the bolt body. On the original Gew 98 rifles it was straight and located horizontally when bolt was in the closed position. On the K98k the bolt handle was bent down, which allowed for more comfortable carrying and bolt operations. Bolt has a gas vent holes that are designed to move the hot gases away from the shooters face and into the magazine opening in the case of the cartridge case or primer rupture. Next famous feature of the model 98 bolt is a "controlled feed" extractor. Massive, non-rotating claw extractor was designed to engage the cartridge rim as soon as cartridge left the magazine, and held the cartridge case firmly until it was ejected by the ejector, fixed inside the receiver. Combined with a slight bolt retraction at the last stage of the bolt turn-open rotation, caused by the cammed surface on the rear receiver bridge, this resulted in very positive primary extraction. Model 98 is a striker-fired weapon. Striker is cocked when bolt is rotated to open, allowing for smoother forward bolt pull. The rear part of the striker is protruded from within the bolt, so state of the action (cocked or not) can be checked visually or even manually. The bolt group can be easily removed from the receiver simply by pulling out the bolt stop, located at the left wall of the receiver, and then by rotating and pulling the bolt out. The safety switch is located at the rear of the bolt and has three positions: in the left position (when looking from behind the rifle) it locks the sear and also locks the bolt in place, so it could not be rotated and opened. in the middle (raised) position it still locks the sear, but bolt is unlocked and could be operated, to load and unload the rifle; and in the right position, the rifle is ready to fire. Safety could be easily operated by the right thumb finger.

Model 98 rifle featured a one-piece wooden stock with semi-pistol grip. Gew 98 and Kar 98K differ not only in the length of the barrel and the front part of the stock - they also have different sling mountings. While Gew 98 has two sling swivels, the K98k has only one, forward swivel. Instead of the rear swivel there`s a through cut in the buttstock, through which the sling is passed. Those rifles also have different rear sights: Gew 98 have a curved, tangent sight, while K98k has more modern, leaf type rear sight. Front sights are of open, barleycorn type, on some carbines with removable semi-circular front sight hoods.

Dates, Makers, and Codes :

In 1934 only two manufacturers where assigned to produce the K98k. These were the Mauser plant at Obendorf, and the firm of J.P. Sauer & Sohn at Suhl. Mauser, Obendorf was the only manufacturer to produce the K98 from 1934-1945. Each year later, other makers were added to produce the K98k, while some makers where dropped due to production demands or interests in producing other weapons, such as machine guns, machine pistols, or other small arms that were needed. By 1943 there were at least 7 factories that were producers of the rifle. Each makers code, dates, and proof markings for each year are listed below.

Mauser, Obendorf- S/42K
J.P Sauer, Suhl- S/147K

Mauser, Obendorf- S/42G
J.P Sauer- S/147G ERMA- S/27G
Mauser, Borsigwalde- S/243G

Mauser, Obendorf- S/42 above date 1936
J. P. Sauer- S/147 above date 1936
ERMA- S/27 above date 1936
Mauser, Bosigwalde- S/243 above date 1936
Berlin-Lubecker- S/237 above date 1936

Mauser, Obendorf- S/42, 1937
J. P. Sauer- S/147, 1937
ERMA- S/27, 1937
Mauser, Borsigwalde- S/243, 1937
Berlin-Lubecker- S/237, 1937
Berlin-Suhler-Waffen (BSW)- BSW, date 1937

Mauser, Obendorf- S/42 1938, and also "42" 1938
J. P. Sauer- S/147 1938, and also "147" 1938
ERMA- S/27, 1938, and also "27" 1938
Mauser, Borsigwalde- S/243 1938, and also "243" 1938
Berlin-Lubecker- S/237 1938, and also "237" 1938
BSW- BSW 1938

Mauser, Obendorf- "42" 1939
J. P. Sauer- "147" 1939 and also no date or code!
ERMA- "27" 1939
Mauser, Borsigwalde- "243" 1939
Berlin-Lubecker- "237" 1939
BSW- BSW 1939, and also combined with Gustloffwerke for "337" 1939
Steyr- Daimler, Steyr- "660" 1939

Mauser, Obendorf- "42" 1940
J. P. Sauer- "147" 1940
ERMA- "27" 1940, and also "ax" 1940
Mauser, Borsigwalde- "243" 1940
Berlin-Lubecker- "237" 1940, and also "duv" 40 date.
Gustloffwerke- "337" 1940 Steyr- "660" 1940, and also "bnz" 40 date.

Mauser, Obendorf- "byf" 41.
J. P. Sauer- "ce" 41
ERMA- "ax" 41
Mauser, Borsigwalde- "ar" 41
Berlin-Lubecker- "duv" 41
Gustloffwerke- "bcd" 41
Steyr- "bnz" 41

Mauser, Obendorf- "byf" 42
J.P. Sauer- "ce" 42
Mauser, Borsigwalde- "ar" 42
Berlin-Lubecker- "duv" 42
Gustloffwerke- "bcd" 42
Steyr- "bnz" 42
Waffen Werke Brunn, Bystrica- "dou" 42

Mauser, Obendorf- "byf" 43
J. P. Sauer- "ce" 43
Mauser, Borsigwalde- "ar" 43
Gustloffwerke- "bcd" 43
Steyr- "bnz" 43
Waffen Werke Brunn, Bystrica- "dou" 43
Waffen Werke Brunn, Brunn- "dot" 43

Mauser, Obendorf- "byf" 44
J. P. Sauer- "ce" 44
Mauser, Borsigwalde- "ar" 44
Gustloffwerke- "bcd" 4
Steyr- "bnz" 44 or "bnz" 4 *
Waffen Werke, Brunn, Bystrica- "dou" 44 *
Waffen Werke, Brunn, Brunn- "dot" 1944 *

Mauser, Obendorf- "byf" 45 * /**
Mauser, Obendorf- "svw" 45 */ **
Mauser, Obendorf- "svw" MB **
Gustloffwerke- "bcd" 45 * Steyr- "bnz" 45 *
Waffen Werke Brunn, Bystrica- "dou" 45 *
Waffen Werke Brunn, Brunn- "swp" 45 *
*- Later (higher) serial numbers were issued as Kriegsmodells.
**- Kriegsmodells had rough unfinished stocks and no butt plate. Some years may have dual maker codes and/or dual dates marked on receiver

K98 Variations-
During the war several changes and/or alterations were made to the K98. Most of these changes were simply design alterations that were made to simplify or increase production of the rifle. Some of these were totally different model of the K98, including the G33/40. The G33/40 was basically a shortened version of the K98. The G33/40 was only in production for 3 years, from 1940-1942. It was produced by Waffen Werke Brunn, Brunn. It fired the exact same 7.92mm round, and had the same Mauser 98 action. However, that is where the similarities end. The G33/40 had several different parts that were not matching with the K98. These included: the bolt, stock, cleaning rod, sight hood cover, upper hand guard, barrel bands, sling, and even the bayonet.

Another example of the changes made to the K98 late in the war is the introduction of the Kriegsmodell K98. The Kriegsmodell K98 is basically the most simplified version of the K98. Several design changes were made to produce the Kriegsmodell. Several items were completely eliminated, such as: bayonet lug, cleaning rod, bolt disassembly disk, bolt guide, barrel band spring, and even the locking screws for the floor plate. Kriegsmodell K98s are usually late 1944 or 1945 production. They will usually have very rough machined parts, and stocks will be rough and usually unfinished.

Bolt Action Rifle

manually operated, rotating bolt

7.92x57 mm Mauser in German service; many other chamberings in export models

(Dep. model/make) 4.09 / 3.92 kg

(Dep. model/make) 1250 / 1101 mm

(Dep. model/make) 740 / 600 mm

4 grooves, rh

Magazine Capacity:
5 rounds in integral box magazine

In Production:

`Kar 98k`, manufacturer`s code and serial number on side of chamber.

A manual safety catch on the rear of the bolt. Turned to the left, the rifle is ready to fire. Turned to the right, the rifle is safe.

set safety catch to fire, open bolt to extract any rounds in chamber. Examine the mag aperture. if there is ammo in the mag, press mag floor-plate catch in the front edge of trigger guard to dump contents. close the bolt, press trigger, close floor plate
