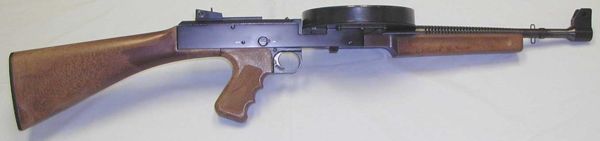

American-180 / SAR 180/275
American-180 Short barrel Modernized Version.
American-180 Exploded View
American-180 Quad Mount, Cheap Anti Low Flying Spy Drone Role
The American-180 is a submachine gun developed in the 1960s which fires .22 LR cartridges from a pan magazine. The concept began with the Casull Model 290 that used a flat pan magazine similar to designs widely used prior to World War II. Only 80 Casull M290s were built and the weapon was expensive to produce. The American-180 is an improved version.
A semi-automatic only variant called the American SAR 180/275 is still produced on a custom basis by E&L Manufacturing of Riddle, Oregon.
The weapon operates through a conventional blowback mechanism. It uses an open bolt with a flat pan magazine. It fires at a relatively high rate of fire of around 1,200 RPM. The American-180 was purchased mostly by private parties prior to the American ban on production of machine guns for the US civilian market. The A180 was adopted by the Utah Department of Corrections to arm prison guards.
Despite the relatively low power of the .22 LR round, testing demonstrated that automatic fire could penetrate even concrete and bulletproof vests from cumulative damage. However, the target would have to remain still for an improbable amount of time to allow the cumulative damage to amass in the same area to achieve this.
Voere, Illinois Arms Company, Inc. American Arms International, E&L Manufacturing
blowback, open bolt
.22 LR, .22 Short Magnum
2.6 kg (5.7 lb) (Empty), 4.5 kg (10 lb) loaded with 177-round magazine
900 mm (35.5 in)
470 mm (18.5 in), 229 mm (9 in) (short barrel)
165, 177, 220, or 275 round
detachable pan magazine
Fixed open sights, Factory-installed laser sights
Rate of fire:
